CNC電腦鉋花機CE認證

The advanced CNC technology provides operators with significantly lower operating costs and greater productivity!

  • The HSD high-frequency spindle provides a maximum speed up to 24,000RPM as standard.

  • Italian-imported HSD high frequency spindle.

  • The servo motor directly drives the ball screw and is transmitted through a coupling for backlash free transmission.

  • The exclusively designed extra-large base structure provides a solid support for the entire machine. This design also features the optimal rigidity and stability of structure.

  • The base is tempered to relieve internal stress, ensuring that tja base is deformation free.

  • The moving columns structure greatly saves a lot of space.

  • The double columns move on heavy-duty linear guide ways, featuring great rigidity and stability.

  • Each machine is subject to laser inspections for positioning accuracy, repeatability, screw pitch error and backlash. Full travel positioning accuracy: ±0.03 mm.

  • A ball bar testing equipment is applied to inspect circularity and geometric accuracy. Circularity: ±0.02 mm.

  • Equipped with "Fully dense cable tray" (made by IGUS, GERMANY) to prevent dust.

  • Suitable for: system cabinet, OA office furniture, aluminum, fireproof board, thermal insulation board, acrylic, engineering plastic, copper.

MODEL IDENTIFICATION
CNC ROUTER YL-12242 R+B+U+N

YL-12242 R+B+U+N

YL-15302 R+B+U+N

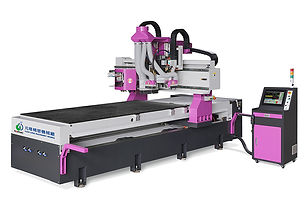

CNC ROUTER YL-12242 R+B+U
CNC ROUTER YL-12242 R+R

YL-12242 R+R+L

YL-15302 R+R+L


CNC ROUTER YL-12241R
CNC ROUTER YL-48122 R+B+U
CNC ROUTER YL-12094R
CNC ROUTER YL-1509
CUTTING TOOL COOLING
OIL MIST SPRAYER
